How it works

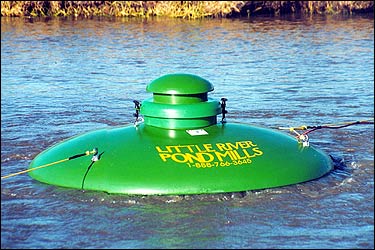

• Although the Enviro 700 Series Pond Mill is electric, it can easily be powered from an on-shore solar panel system. The machine diameter is 1.8 m (6 feet) with the above water height being 0.6 m (2 feet). Solar powered hook-up is available for certain applications.

Amperage, Voltage and Horsepower Statistics

• The 1725 rpm ½ hp motor is gear reduced to 130 rpm and operates on either single or three phase power.

  The ½ hp single phase 110/220 (volts/volts) draws 6 amps (220 is ½ this therefore 3 amps); and

  the ½ hp three phase 208-230/460 (volts/volts) draws 1-1.2 amps for the 208-230 and 0.8 amps for the 460.

The monthly electrical treatment cost during the winter 2003-2004 on a hog lagoon in South Central Alberta, Canada was a mere $90.00 running on 3 phase power in comparison to the monthly electrical treatment cost of $1,100.00 for a previously used 7 hp aeration system that proved inadequate in providing sufficient aeration for odour abatement and solids reduction. Over the course of only one year, the energy savings alone add up to $12,120.00 and this does not include the potential added benefits under aspects of Kyoto and benefits to the environment.

Although the 1/2 hp motor has proven to be very popular, we can and do accommodate other motor speed and gear ratios. Contact us for further details.

Please stay tuned for further information and design specs on this new super efficient and easy to ship model.

Amperage, Voltage and Horsepower Statistics

• The ½ hp motor is gear reduced to 107 rpm and operates on either single or three phase power.

  The ½ hp single phase 110/220 (volts/volts) draws 6 amps (220 is ½ this therefore 3 amps); and

  The ½ hp three phase 208-230/460 (volts/volts) draws 1-1.2 amps for the 208-230 and 0.8 amps for the 460.

We can and do accommodate other motor speed and gear ratios when required. Contact us for further details.
